A home environment sensor
How we made a home environment sensor display from a Raspberry Pi and electronic paper DIY kit


A home environment sensor
6 March 2014
Logo mark

What happens when you deploy Visionect's stack to the Raspberry Pi? A Webkit instance on a server that renders websites and sends the resulting images to simple e-paper devices over the air. The device is just the interface, the server does all the heavy lifting.

Can the Raspberry Pi handle it?

Visionect's frontend wizard, Matevz, decided to find out. He found Raspberry Pi boards inside Cubesensors, mixed two of the most interesting Slovenian hardware startups together, and barely broke a sweat doing it.

Icon quotation left
Matevž scraped together some hardware collecting dust around the office. A Raspberry Pi out of a fellow startup's device, an e-ink display his startup is working on, and a Wi-Fi dongle from the internets.
Icon quotation right

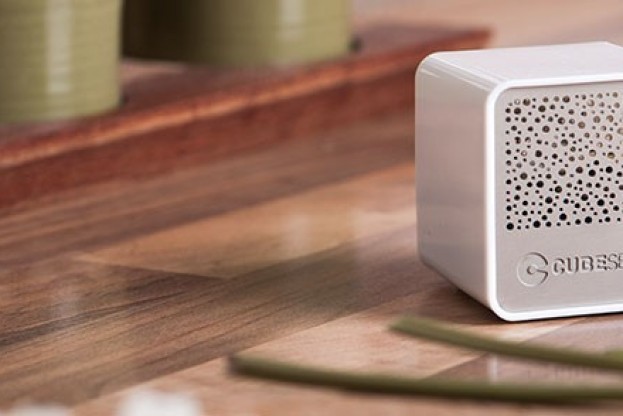

Cubesensors are cute!

The hardware

A Raspberry Pi will act as the server doing all the heavy lifting. Talking to the sensors, rendering output for the display and so on. Something, anything, on the Pi needs to produce ZigBee log files. We're going to parse these to produce a shiny dashboard.

Getting a few cute and cuddly Cubesensors will be easiest.

Then you need some way to display the data. Matevž used Visionect's V Tablet, but anything that can open a webpage will do. E-ink just happens to have great battery life.

Icon quotation left
You might not have the same stuff laying around as Matevž does, but you don't need much really.
Icon quotation right

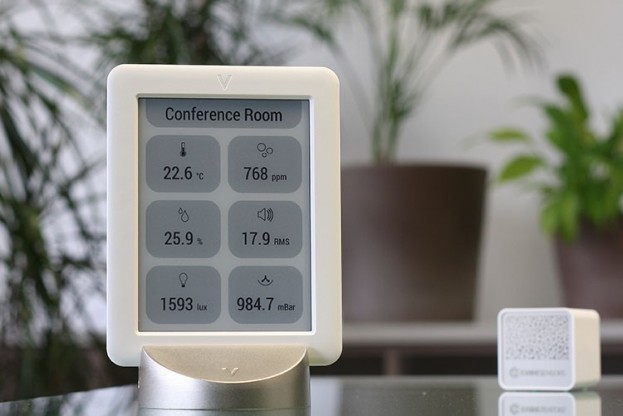

Shiny V Tablet with a cute Cubesensor. Perfect.

Visionect+Cubesensors+node.js = win

Contrary to what you'd expect, shoving a server that usually takes a beefy processor and many rams onto the 700MHz Raspberry Pi was completely uneventful. It just worked.

  • install some dependancies
  • make deb packages for Visionect things
  • use gvm to update Go and get the admin panel working
  • write a log parser for sensor logs
  • make a simple static file server
  • write some code to display data
  • hook up the tablets

And that's it. That's all it took. Imagine my disappointment expecting a juicy tale of trial and error, of heroic hacking and triumph. Instead, everything just ... worked.

Matevž says the hardest part was creating those deb packages, but now you can just run sudo apt-get install koala.

If you ever need to make a deb package, Matevž swears by the seven step guide from Web Upd8.

PARSING LOG FILES

Because there's still no official API, Matevž had to do some inventive hacking - parsing ZigBee logs.

When Cubesensors talk to each other, they leave a trail in /var/log/ziggy.stdout.log. I'm not sure why, but it sure came in handy.

Logs look like this:

[20140306T09:49:08.034570] New node id=409D, eui64=000D6F0003053413 [20140306T09:49:09.533744] 000D6F0003C16E48: data = {"noise": 16.532, "temp": 24.5, "fw": 28, "battery": 2464, "light": 1708, "voc": 400, "humidity": 1576, "pressure": 986.0, "voc_resistance": 14590, "shake": true} [20140306T09:49:09.540727] 000D6F0003C16E48: score = 66.297 (temp=23.5/1.0 humidity=20.0326797386/-0.348102820428 voc=450/1 noise=16.532/1) [20140306T09:49:09.544915] 000D6F0003C16E48: reply = '\x11\x00B' (kwargs={"home": true, "score": 66}, queue={}) [20140306T09:49:09.606970] Sequences: '8F' added [20140306T09:49:09.842009] Sequences: '8F' done (ACK), removing. [20140306T09:49:10.004599] 000D6F0003053413: received ping [20140306T09:49:10.010692] 000D6F0003053413: reply = '\x10\x00' (kwargs={"home": true}, queue={})

Parsing those into a useful form is a simple matter of using node's Tail package and applying a regex.

var tail = new Tail("/var/log/ziggy.stdout.log"),
	pat = /\[.*?\] (.*?): data = (.*?})/g,
	sensors = {};

tail.on("line", function(line) {
	var data = pat.exec(line);
 	if (data) {
	   sensors[data[1]] = JSON.parse(data[2]);
}
});

See, simple.

Displaying the data

Sweet, V Tablet shows some data!

Our data is in a friendly JSON format. All we need now is a web app to display it.

First you'll need a static server. Because you're using node.js to parse the logs, a server is just a node-static away. But Matevž is a frontend developer so he didn't know that and built it himself. That's okay too.

Most of the frontend code is boring because it just handles navigation. FetchData is more interesting because it deals with displaying the data. An interval calls it every ten seconds.

fetchData = function() {
	$.getJSON('data.json', function(new_data) {
	 data = new_data;
	 $.each(data, function(id, cube) {
		cube.voc = Math.max(cube.voc - 900, 0)*0.4 + Math.min(cube.voc, 900)
                cube.humidity = Math.min(95, Math.max(10, (cube.humidity -330*5.1)/(600/1000*5.1) + 55))
		cube.light=10/6.0*(1+cube.light/1024.0)*4.787*Math.exp(-(Math.pow((cube.light-2048)/400.0+1, 2)/50.0))) *(102400.0/Math.max(15, cube.light) - 25);
	});
	if ($('#data').is(':visible')) {
		renderData($('#data').data('id'));
	}
  });
}

To be honest, I'm not sure how those conversions work or what any of the numbers mean, but the end result is a human readable display of temperature, noise, humidity, light, air pressure, and air quality in a room. You can get the full source code at github.com/visionect/cubesensorsdislpay.

Icon quotation left
Mmm, maths. And magic numbers.
Icon quotation right

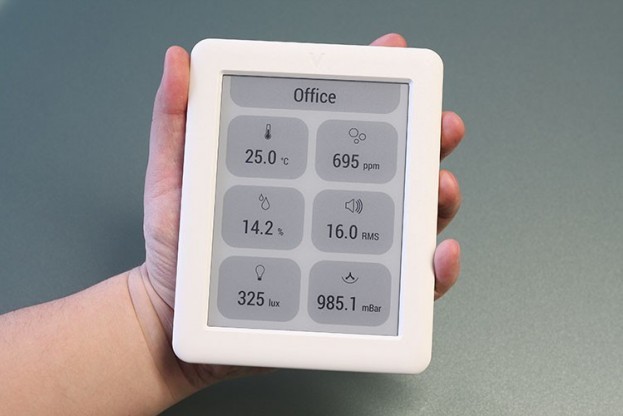

A bunch of environmental data on an e-paper V Tablet.

Hooking up the tablets

Now we have to turn the Raspberry Pi into a WiFi hotspot for the tablets.

You'll need a wi-fi dongle, some more deb packages, and a bit of configuration. Matevž says he used the TP Link TL-WN722N dongle, but you can use whatever you've got. Especially if it's based on the Atheros chipset.

Then you have to add deb http://mirrordirector.raspbian.org/raspbian/ wheezy non-free to/etc/apt/sources.list and run apt-get install firmware-atheros isc-dhcp-server hostapd to install all the packages.

After that, some configuration:

auto wlan0
iface wlan0 inet static
	address 192.168.20.1
	netmask 255.255.255.0
	network 192.168.20.0
	broadcast 192.168.20.255

# /etc/dhcp/dhcpd.conf

subnet 192.168.20.0 netmask 255.255.255.0 {
  range 192.168.20.100 192.168.20.200;
  option routers 192.168.20.1;
  interface wlan0;

 }

# /etc/hostapd/hostapd.conf

interface=wlan0
driver=nl80211
ssid=WIFI_NAME
hw_mode=g
channel=11
wpa=1
wpa_passphrase=WIFI_PASSWORD
wpa_key_mgmt=WPA-PSK
wpa_pairwise=TKIP CCMP
wpa_ptk_rekey=600
macaddr_acl=0

# /etc/init.d/hostapd.conf

DAEMON_CONF=/etc/hostapd/hostapd.conf

Then tell the Raspberry Pi to turn into an access point every time it boots:

update-rc isc-dhcp-server defaults
update-rc hostapd defaults

And voila. A self-contained system where a bunch of sensors inside a plastic box hooked up to a Raspberry Pi talk to a palm-sized e-paper tablet.

Well, you have to tell the tablet to connect to this access point as well. But that's trivial - go into settings, input the right IP addresses. Then don't forget to visit Visionect admin panel at http://192.168.20.1:8150 and tell it which URL to serve. For the Cubesensors experiment this was http://192.168.20.1:8888.

Do it yourself

Let's recap. To turn your Raspberry Pi into a Visionect server you have to:

  • add Visionect's deb packages to sources.list, visit: packages.visionect.com
  • get a Wi-Fi dongle
  • convince your Pi to act as an access point
  • tell the tablet where to connect

But I'm sure with some of elbow grease you can make almost any combination of hardware do these things. Our way might just be easier.

WHAT ARE YOU GOING TO BUILD?

Matevž made a room sensor display on an e-paper V Tablet. What are you going to build?
